300Mbps Wireless N 4G LTE Router

TL-MR6400

and enjoy download speeds of up to 150Mbps

Wireless N speeds of up to 300Mbps

Integrated antennas provide stable wireless connections

Requires no configuration - just insert a SIM card and turn

it on to enjoy high speed internet access

LAN/WAN port provides options and flexibility,

allowing you to choose your connection type

HARDWARE FEATURES

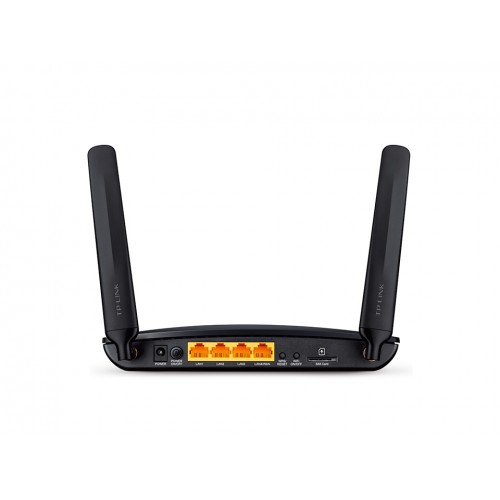

Interface	3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port,  1 SIM Card Slot
Button	WPS/Reset Button, Wireless On/Off Button, Power On/Off Button
External Power Supply	12V/1A
Dimensions ( W x D x H )	7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)
Antenna Type	2 Internal Wi-Fi Antennas,  2 Detachable External 4G LTE Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz
Signal Rate	300Mbps at 2.4GHz
Reception Sensitivity	11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm
Transmit Power	CE: <20dBm(2.4GHz)
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type	4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B40 (2600/2300MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)

SOFTWARE FEATURES
Quality of Service	Traffic Control(IP QoS)
Operating Modes	3G/4G Router, Wireless Router
Management	Access Control, Local Management, Remote Management
WAN Connection Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
DHCP	Server, Client, DHCP Client List, Address Reservation
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall, IP Address Filter/Domain Filter,  IP and MAC Address Binding
Protocols	Supports IPv4 and IPv6
Guest Network	2.4GHz guest network x 1

OTHERS
Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N 4G LTE Router, TL-MR6400 RJ45 Ethernet Cable Power Adapter Quick Installation Guide Micro to Standard SIM Card Adapter Nano to Standard SIM Card Adapter
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,  MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0,  Safari 4.0 browsers or higher, or other Java-enabled browsers SIM Card
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
