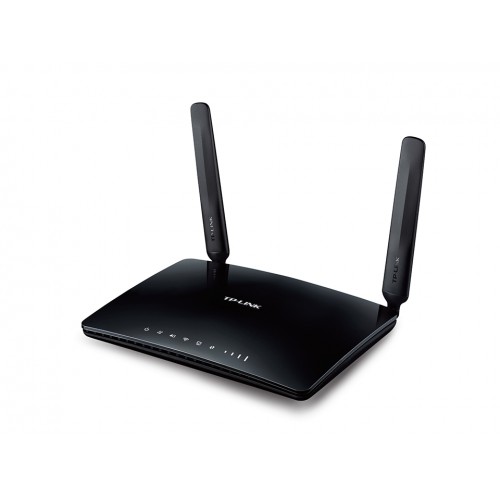

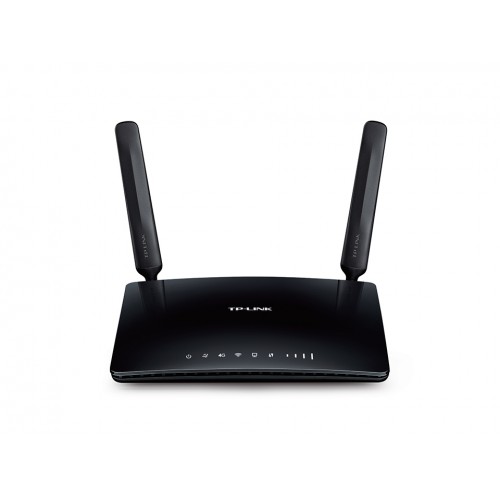

AC750 Wireless Dual Band 4G LTE Router

Wi-Fi devices and enjoy download speeds of up to 150Mbps

Powerful, integrated antennas provide stable

wireless connections and better coverage

Requires no configuration, just insert a SIM card and

turn it on to enjoy a fast wireless connection

Creates simultaneous dual band Wi-Fi networks,

with maximum speeds of up to 300Mbps on the

2.4GHz band and 433Mbps on the 5GHz band

Offers options and flexibility with the LAN/WAN port,

allowing you to choose your connection type

HARDWARE FEATURES

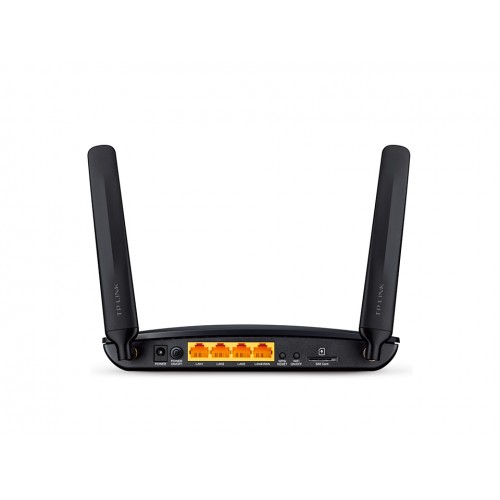

Interface	3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot
Button	WPS/Reset Button, Wireless On/Off Button, Power On/Off Button
Antenna	3 Internal Wi-Fi Antennas,  2 Detachable External 4G LTE Antennas
External Power Supply	12V/1A
Dimensions ( W x D x H )	7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz and 5GHz
Signal Rate	300Mbps at 2.4GHz, 433Mbps at 5GHz
Reception Sensitivity	5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm
Transmit Power	CE: <20dBm(2.4GHz), <23dBm(5GHz)
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type	4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B40 (2600/2300MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)

SOFTWARE FEATURES
Quality of Service	Trafc Control(IP QoS)
Operating Modes	3G/4G Router, Wireless Router
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management	Access Control, Local Management, Remote Management
DHCP	Server, Client, DHCP Client List, Address Reservation
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall, IP Address Filter/Domain Filter,  IP and MAC Address Binding
Protocols	Supports IPv4 and IPv6
Guest Network	2.4GHz guest network x 1, 5GHz guest network x 1
IPSec VPN	Supports up to 10 IPSec VPN tunnels

OTHERS
Certification	CE, FCC, RoHS
Package Contents	AC750 Wireless Dual Band 4G LTE Router, Archer MR200 RJ45 Ethernet Cable Power Adapter Quick Installation Guide Micro to Standard SIM Card Adapter Nano to Standard SIM Card Adapter
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher,or other Java-enabled browsers SIM Card
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
