Specifications
Model	CS-DP2-R100-6E3WPFBS
General
Dimension	Screen and Base: 115.5 x 85.5 x 24.5 mm (4.55 x 3.37 x 0.96 inch) Camera: 71 x 71 x 48.3 mm (2.80 x 2.80 x 1.90 inch)
Weight	Product: 320 g (11.29 oz) With package: 595 g (20.99 oz)
Screen	4.3 inch Color Touch Screen
Color	Silver
Button	Doorbell button, power button, screen wake-up button
Supported Peephole Diameter	14 mm to 50 mm (0.55 inch to 1.97 inch)
Supported Door Thickness	35 mm to 105 mm (1.38 inch to 4.13 inch)
Operating Conditions	-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Camera
Sensor	1/2.7" Progressive Scan CMOS
Lens	2.0mm @ F2.0 Viewing angle: 166° (Diagonal), 136° (Horizontal), 80° (Vertical)
Max. Resolution	2K / 3MP
Day / Night Switch	ICR infrared filter
IR Night Vision Distance	Up to 16.4 ft / 5 m
Video & Audio
Video Frame Rate	15 fps
WDR	DWDR
Audio Input	Built-in high sensitivity microphone
Audio Output	Built-in high-power speaker
Ringtones	Supports up to 5 ringtones, and the volume is adjustable
Function
Detection	Advanced PIR Motion Detection
PIR Angle	110°
PIR Distance	Up to 20 ft / 6 m
PIR Sensitivity	Adjustable
Image Distortion Correction	Supports
Local Storage	Supports microSD card (Up to 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay storage (Subscription required)
General Function	Cloud video encryption and image encryption
Network
Protocol	EZVIZ Cloud Proprietary Protocol
Video Intercom	Local and remote video intercom
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Power
Wiring	Hard-wired
Power Supply	DC 5V ± 10%
Power Consumption	Max. 2.2W
In the box

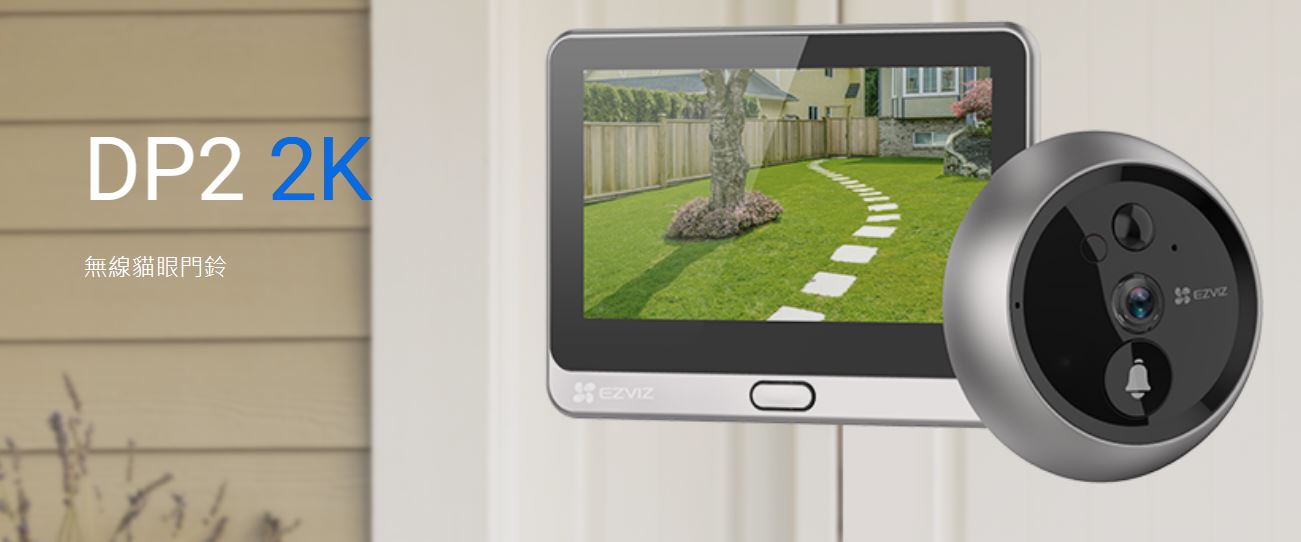

In the box	DP2 2K Peephole Doorbell
	Panel
	Mounting Base
	Base Cover
	Buckle
	Screws × 6
	Power Cable
	Regulatory Information
	Quick Start Guide
